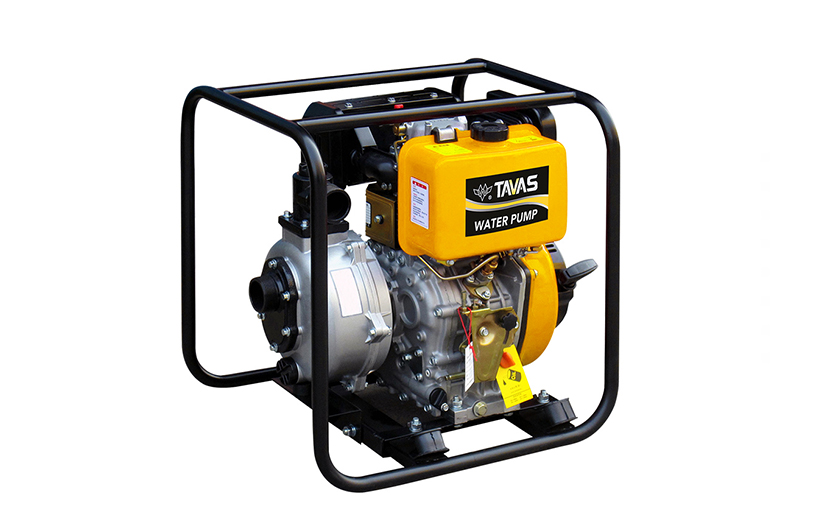

TAVAS Water Pump DP20H
DP20H DP30H
With diesel engine it can deliver high flow rates and pressure, allowing for effective water pumping over long distances or at elevated heights. They are capable of providing sufficient water pressure to meet the demands of irrigation systems or other water-related applications.
minimum order
30
Quantity
TAVAS Water Pump DP20H
With diesel engine it can deliver high flow rates and pressure, allowing for effective water pumping over long distances or at elevated heights. They are capable of providing sufficient water pressure to meet the demands of irrigation systems or other water-related applications.
| Technical data | ||||
| Pump data | DP15H(E) | DP20H(E) | DP30H(E) | |
| Type | aluminum high pressure water pump | |||
| Suc.& discharge dia. | mm | 40(1.5"),40(1.5") | 50(2"),50(2") | 80(3"),80(3") |

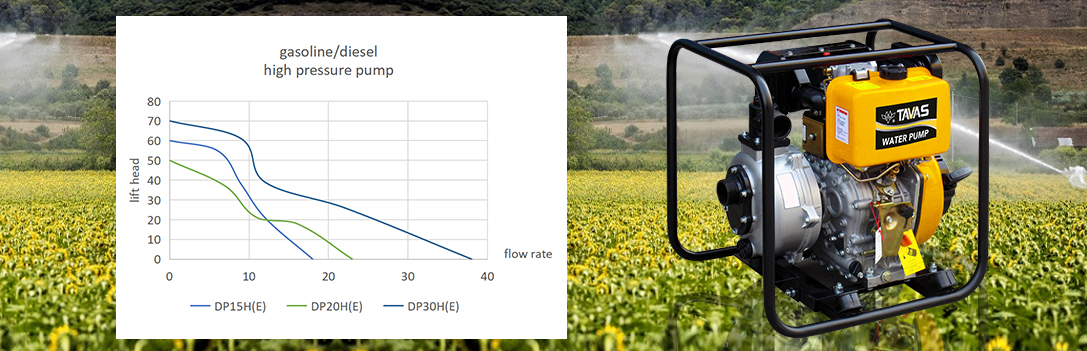

| Max. lift head | m | 60.0 | 50.0 | 70.0 |
| Suction lift | m | 8.0 | 8.0 | 8.0 |
| Max. flow rate | Lpm | 18 | 23 | 38 |
| Engine data | ||||
| Model | 173F | 178F | 186FA | |
| Bore x stroke | mm | 73×59 | 78×62 | 86×72 |
| Displacement | cc | 246 | 296 | 418 |
| Nominal speed | rpm | 3600 | 3600 | 3600 |
| Starting system | Manual or electric | Manual or electric | Manual or electric | |
| Lubrication system | Forced lubrication at multiple points | |||
| Lubrication volume | L | 0.75 | 1.1 | 1.65 |
| Cooling system | Forced air-cooling by fly wheel fan | |||
| Fuel tank capacity | L | 2.5 | 3.5 | 5.5 |
| Noise level | ||||
| Sound pressure level(Lpa) at 7m | dB(A) | 68 | 70 | 71 |
| Sound power level(Lwa) | dB(A) | 93 | 95 | 96 |
| Dimensions | ||||
| L×W×H | mm | 570×470×580 | 605×485×600 | 655×480×620 |
| Gross Weight | kg | 45 | 57 | 63 |

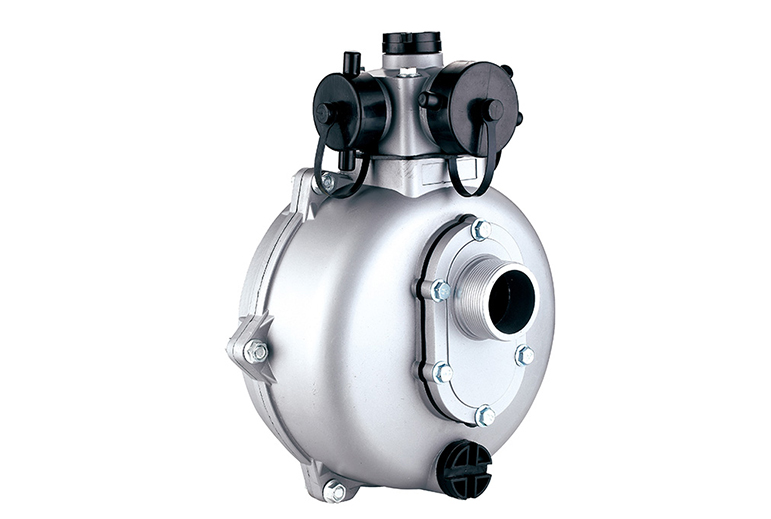

Aluminum high pressure pump
Variable outlet size depending on the need for high head and high flow.
Silicon Carbide Mechanical seal, excellent thermal conductivity and resistance to oxidation at high temperatures.
Impeller dynamic balance adjustment for steady flow and power efficiency.

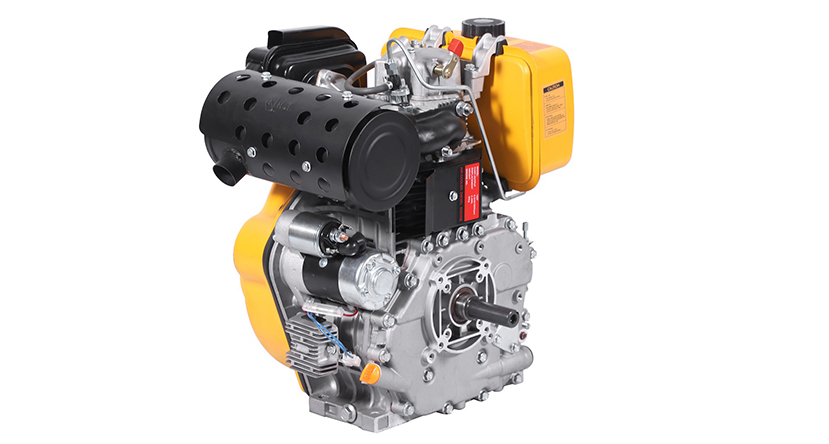

Powered by TAVAS high performance engine.
3000 hours engine service life under proper maintenance.
Nitrided crankshaft with lifetime guarantee.
Top grade bearings at crankshaft, camshaft and balanceshaft, Maximize service life.
Engines fully tested and cleaned before mounted on generators
